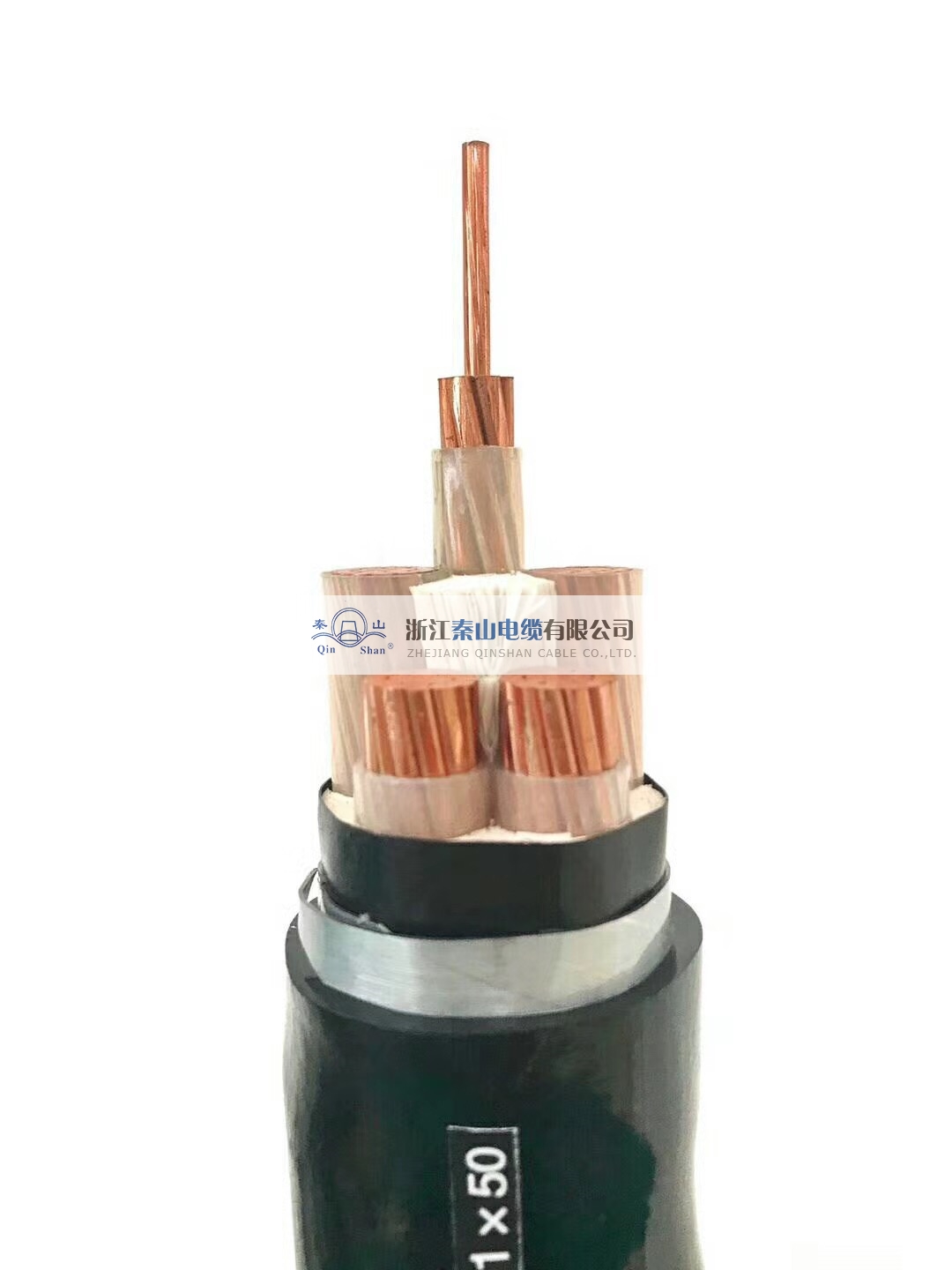

Copper Conductor XLPE Insulated Steel Tape Armoured PVC Sheathed Power Cable

Create: 09/19/2018

Expired Date:	09/28/2019
Category:	Electrical cable [Equipment&Machinery]
Message:	Copper Conductor XLPE Insulated Steel Tape Armoured PVC Sheathed Power Cable Model No.: YJV22-0.6/1.0KV Application: Power Transmission And Lighting Systems Standards: IEC 60502, IEC 60228, GB/T 12706.1-2008 For laying indoors and outdoors, it's able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed. Rated voltage: 0.6/1.0kV Maximum conductor temperature: normal 90℃, short circuit (no more than 5s) 160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2 Minimum ambient temperature: The cable shall be pre heated if the ambient temperature is below 0℃ Minimum bending radius: For single core cable 20 x (d+D) ±5% For multi-cores cable: 15 x (d+D) ±5%






City:	Jiaxing[CN]
